daqc_private.c File Reference

#include "daq_config.h"
#include "nds_logging.h"
#include "daqc_private.h"
#include "daqc_response.h"

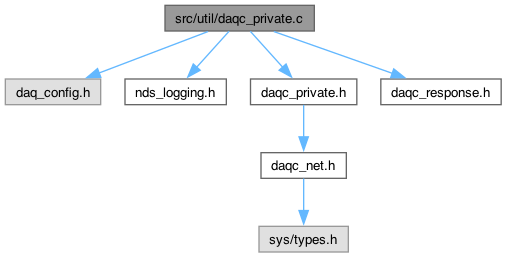

Include dependency graph for daqc_private.c:

Macros
#define	INVALID_SOCKET   -1
#define	SHUT_RDWR   2

Functions
void	daq_private_init (daq_private_t *Private)
void	daq_private_create (daq_private_t **Private)
void	daq_private_delete (daq_private_t **Private)
int	daq_private_srvr_is_open (daq_private_t *Private)
int	daq_private_srvr_nonblocking (daq_private_t *Private, int NonBlocking)
	Select non-blocking or blocking server socket I/O.
void	daq_private_srvr_close (daq_private_t *Private)
	Close server socket.
int	daq_private_srvr_connect (daq_private_t *Private)
	Connect to a server.
void	daq_private_srvr_disconnect (daq_private_t *Private)
int	daq_private_srvr_open (daq_private_t *Private)
int	daq_private_data_close (daq_private_t *Private)

Macro Definition Documentation

INVALID_SOCKET

#define INVALID_SOCKET   -1

SHUT_RDWR

#define SHUT_RDWR   2

Function Documentation

daq_private_create()

void daq_private_create

(

daq_private_t **

Private

)

Allocate a private structure AND the socket_addr_t element. Call daq_private_init to initialize the data elements.

Parameters

Private

pointer to receive new private structure address.

daq_private_data_close()

int daq_private_data_close

(

daq_private_t *

Private

)

Close the data socket. daq_private_data_close is protected against invalid Privte pointer of invalid (unopened) socket id.

daq_private_delete()

void daq_private_delete

(

daq_private_t **

Private

)

Free the private data structure. Call daq_private_srvr_disconnect to free the socket address and then free the Private structure. The Private structure pointer is set to NULL. daq_private_delete is protected against a NULL Private structure pointer address or NULL structure pointer.

Parameters

Private

Address of private structure pointer.

daq_private_init()

void daq_private_init

(

daq_private_t *

Private

)

Initialize all fields of a pre-allocated private data structure. The socket numbers are initialized to INVALID_SOCKET and if the server address field is allocated (srvr_addr not NULL), it is zeroed.

Parameters

Private

is a pointer to the private structure to be initialized.

daq_private_srvr_close()

void daq_private_srvr_close

(

daq_private_t *

Private

)

Close server socket.

Shut down server socket connection and close the socket. Invlidate the socket number. daq_private_srvr_close IS protected against both invalid (NULL) Private pointer and socket number.

Parameters

Private

Pointer to private structure

daq_private_srvr_connect()

int daq_private_srvr_connect

(

daq_private_t *

Private

)

Connect to a server.

Open a connection to the pre-specified server. The socket specified in sockfd is connected to the server whose address is specified in srvr_addr. No check is made for valid (non-NULL) private structure pointer or valid socket number.

Parameters

Private

Pointer to the private structure.

Returns

Error if non-zero.

daq_private_srvr_disconnect()

void daq_private_srvr_disconnect

(

daq_private_t *

Private

)

Free the socket_addr_t storage and set pointer (srvr_addr) to NULL. daq_private_srvr_disconnect is protected against NULL pointers to the private structure and to the socket addr structure.

Parameters

Private

is a pointer to the Private structure to be disconnected.

daq_private_srvr_is_open()

int daq_private_srvr_is_open

(

daq_private_t *

Private

)

Test whether the server port is connected.

Parameters

Private

is a pointer to the private structure to be tested.

Returns

Non-zero if the server port is connected.

daq_private_srvr_nonblocking()

int daq_private_srvr_nonblocking	(	daq_private_t *	Private,
		int	NonBlocking
	)

Select non-blocking or blocking server socket I/O.

Set the server socket for blocking/non-blocking I/O. If the NonBlocking argument is non-zero, the socket is set for non-blocking I/O. If it is zero, the socket is set to block.

Note

Not protected against invalid Private pointer (NULL) or socket.

Parameters

Private	Private structure pointer.
NonBlocking	Select Blocking/Non-Blocking I/O.

Returns

Zero if previously blocking I/O.

daq_private_srvr_open()

int daq_private_srvr_open

(

daq_private_t *

Private

)

Allocate an internet stream (tcp) socket to communicate with a server. Set socket to allow reuse.
