daqc_access.c File Reference

#include <ctype.h>
#include <errno.h>
#include <limits.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "stdint.h"
#include <io.h>
#include "daqc.h"
#include "daqc_private.h"
#include "daqc_response.h"
#include "daqc_internal.h"
#include "daqc_net.h"
#include "nds_logging.h"
#include "nds_os.h"
#include "nds1.h"
#include "nds2.h"
#include "trench.h"

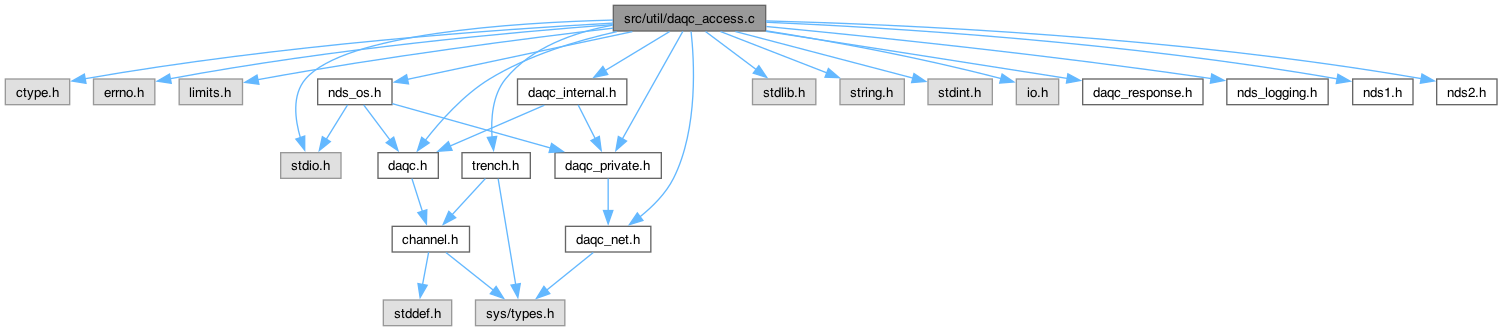

Include dependency graph for daqc_access.c:

Macros
#define	TRACE_ENTRY_EXIT   0
#define	TEST_NAME(x)
#define	FAST_BLOCKS_PER_SEC   16
#define	SERVER_ID_LENGTH   8
#define	DAQ_REQUEST_BLOCK_SIZE   16
#define	TEST_NAME(x)

Functions
size_t	data_type_size (daq_data_t dtype)
size_t	data_type_word (daq_data_t dtype)
double	data_type_max (daq_data_t dtype)
const char *	data_type_name (daq_data_t dtype)
daq_data_t	data_type_code (const char *name)
int	daq_disconnect (daq_t *daq)
	Disconnect from the server.
int	daq_connect (daq_t *daq, const char *host, int port, enum nds_version vrsn)
	Make a connection to an NDS server.
void	daq_destroy (daq_t *daq)
	Close and delete all client status structure elements.
static int	daq_cycle_conn_if_needed (daq_t *daq)
int	daq_send (daq_t *daq, const char *command)
	send a command string.
int	daq_recv_block (daq_t *daq)
	Receive a data block.
int	daq_recv_block_num (daq_t *daq)
	Receive block number.
int	daq_recv_next (daq_t *daq)
	Receive a data block.
int	daq_recv_shutdown (daq_t *daq)
	Close the client connection.
int	daq_recv_channels (daq_t *daq, daq_channel_t *channel, int num_channels, int *num_received)
	Get a list of online channels.
int	daq_recv_channel_hash (daq_t *daq, void *hash, int *length, time_t gps, enum chantype type)
	Get a channel list hash.
int	daq_recv_hash_by_pattern (daq_t *daq, void *hash, int *length, time_t gps, enum chantype type, const char *pat)
	Get a channel list hash.
int	daq_recv_channel_list (daq_t *daq, daq_channel_t *channel, int num_channels, int *num_received, time_t gps, enum chantype type)
	Get a list of channels.
int	daq_recv_channels_by_pattern (daq_t *daq, daq_channel_t *channel, int num_channels, int *num_received, time_t gps, enum chantype type, const char *pat)
	Get a list of channels.
int	daq_recv_epoch_list (daq_t *daq, char *list, size_t max_len, int *str_len)
	Get a list of epochs.
long	daq_recv_id (daq_t *daq)
	Receive an ID.
int	daq_recv_source_data (daq_t *daq, char *list, size_t max_len, time_t gps, long *str_len)
	Get a list of source frames.
int	daq_recv_source_list (daq_t *daq, char *list, size_t max_len, time_t gps, long *str_len)
	Get a list of source frames.
static chan_req_t *	get_request_entry (daq_t *daq)
int	daq_request_channel (daq_t *daq, const char *name, enum chantype type, double rate)
	Add a channel to the request list.
int	daq_request_channel_from_chanlist (daq_t *daq, daq_channel_t *pchan)
	Add a channel to the request list.
int	daq_clear_channel_list (daq_t *daq)
	Clear the channel list.
chan_req_t *	daq_get_channel_status (daq_t *daq, const char *channel)
	Get a pointer to channel data.
int	daq_get_data_length (daq_t *daq, const char *channel)
	Get the channel data length.
const char *	daq_get_channel_addr (daq_t *daq, const char *channel)
	Get a pointer to the data for the specified channel.
char *	daq_get_channel_data (daq_t *daq, const char *channel, char *data)
	Copy channel data.
int	daq_get_last_message (daq_t *daq, char *buf, size_t max_len, int *len)
	Get the last message.
int	daq_get_scaled_data (daq_t *daq, const char *channel, float *data)
	Calibrate and copy channel data.
int	daq_request_check (daq_t *daq, time_t start, time_t end)
	Check requested data.
int	daq_request_data (daq_t *daq, time_t start, time_t end, time_t dt)
	Get requested data.
int	daq_set_epoch (daq_t *daq, const char *epoch)
	Set the default epoch.
const char *	daq_strerror (int errornum)
	determine English equivalent of return code.
int	daq_startup (void)
	Initialize nds1/nds2 client subsystems.
void	daq_init (daq_t *daq)
	Initialize a daq_t structure.
void	daq_init_channel (daq_channel_t *chan, const char *name, enum chantype ctype, double rate, daq_data_t dtype)
	Initialize a daq_channel_t structure.
int	daq_is_connected (daq_t *daq)
	Test for connected server.
const char *	cvt_chantype_str (enum chantype t)
enum chantype	cvt_str_chantype (const char *name)

Macro Definition Documentation

DAQ_REQUEST_BLOCK_SIZE

#define DAQ_REQUEST_BLOCK_SIZE   16

FAST_BLOCKS_PER_SEC

#define FAST_BLOCKS_PER_SEC   16

SERVER_ID_LENGTH

#define SERVER_ID_LENGTH   8

TEST_NAME [1/2]

#define TEST_NAME

(

x

)

Value:

    if ( !strcmp( name, data_type_name( x ) ) )                                \
    return x

TEST_NAME [2/2]

#define TEST_NAME

(

x

)

Value:

    if ( !strcmp( name, cvt_chantype_str( x ) ) )                              \
    return x

TRACE_ENTRY_EXIT

#define TRACE_ENTRY_EXIT   0

Function Documentation

cvt_chantype_str()

const char * cvt_chantype_str

(

enum chantype

t

)

Convert a channel type code to a string.

cvt_str_chantype()

enum chantype cvt_str_chantype

(

const char *

str

)

Convert a channel type string to a channel type code

daq_cycle_conn_if_needed()

static int daq_cycle_conn_if_needed ( daq_t *  daq )

static

data_type_code()

daq_data_t data_type_code

(

const char *

name

)

Function to return data type name.

data_type_max()

double data_type_max

(

daq_data_t

dtype

)

Function to relate data types to maximum value.

data_type_name()

const char * data_type_name

(

daq_data_t

dtype

)

Function to return data type name.

data_type_size()

size_t data_type_size

(

daq_data_t

dtype

)

Function to relate data types to size.

data_type_word()

size_t data_type_word

(

daq_data_t

dtype

)

Inline function to return word length in bytes. This number gives the granularity in byte for use when swapping data bytes. It differs from the size attribute for complex numbers.

get_request_entry()

static chan_req_t * get_request_entry ( daq_t *  daq )

static
