trench.c File Reference

#include <sys/types.h>
#include <string.h>
#include <stdlib.h>
#include <io.h>
#include "daqc.h"
#include "trench.h"
#include "nds_os.h"

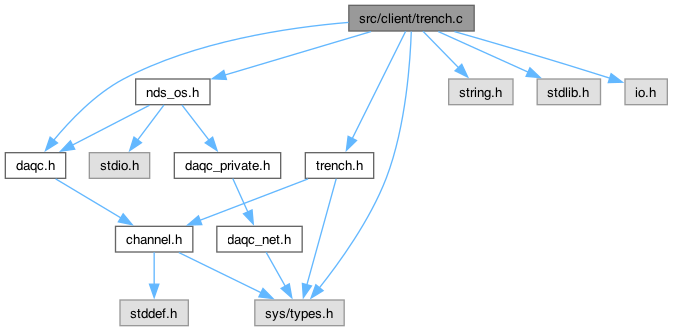

Include dependency graph for trench.c:

Functions
void	trench_init (struct trench_struct *t)
void	trench_infer_chan_info (struct trench_struct *t, enum chantype ctype, double rate, daq_data_t rawtype)
void	trench_parse (struct trench_struct *t, const char *s)
	Parse a channel name.
int	trench_cmp_base (struct trench_struct *t, const char *s)
	Compare string to channel base name.
void	trench_destroy (struct trench_struct *t)
	Release parsed data storage.
daq_data_t	trench_dtype (struct trench_struct *t, daq_data_t rawtype)

Function Documentation

trench_cmp_base()

int trench_cmp_base	(	struct trench_struct *	t,
		const char *	s
	)

Compare string to channel base name.

Compare the base string of a parsed channel name to the specified string. If the parsed channel name is a simple (non-trend) channel, the argument string is compared o the full channel name. If the parsed channel name has a sub-channel suffix (i.e the channel is a trend), the argument string is compared to the base channel name.

Parameters

t	Parsed channel name structure pointer.
s	Pointer to comparison string..

Returns

An integer greater, equal or less than zer depending on whether th parsed base string is greater, equal or less than s.

trench_destroy()

void trench_destroy

(

struct trench_struct *

t

)

Release parsed data storage.

Release internal storage for a parsed channel name.

Parameters

t	Parsed channel name structure pointer.

trench_dtype()

daq_data_t trench_dtype	(	struct trench_struct *	t,
		daq_data_t	rawtype
	)

Infer the data type from the the channel type and sub-channel ID.

Parameters

t	Parsed channel name structure pointer.
rawtype	Data type of raw channel.

Returns

Inferred data type.

trench_infer_chan_info()

void trench_infer_chan_info	(	struct trench_struct *	t,
		enum chantype	ctype,
		double	rate,
		daq_data_t	rawtype
	)

Infer channel information from the (parsed) channel name and the specified channel type, rate and data type.

Parameters

t	Parsed channel name structure pointer.
ctype	Default channel type.
rate	Raw data type.
rawtype	Data type of raw channel.

trench_init()

void trench_init

(

struct trench_struct *

t

)

Initialize the trench structure. THe name string is set to NULL, the channel and data types are set to unkown, the channel sub-type field is set to trch_base and the rate is set to zero.

Parameters

t	Parsed channel name structure pointer.

trench_parse()

void trench_parse	(	struct trench_struct *	tch,
		const char *	str
	)

Parse a channel name.

Parse a channel specifier.

Parameters

tch	Parsed channel name structure pointer.
str	String to be parsed.
