NDS::abi_0::channel_predicate_object Class Reference

A predicate object to be used in limiting the number of channels returned when searching for channels. More...

#include <nds_connection.hh>

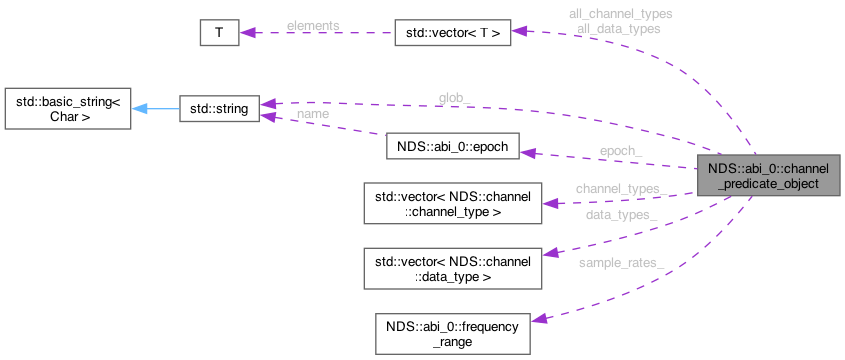

Collaboration diagram for NDS::abi_0::channel_predicate_object:

Public Types
typedef std::vector< NDS::channel::channel_type >	channel_type_list
typedef std::vector< NDS::channel::data_type >	data_type_list

Public Member Functions
	channel_predicate_object ()
	channel_predicate_object (const channel_predicate_object &other)=default
	channel_predicate_object (channel_predicate_object &&other)=default
channel_predicate_object &	operator= (const channel_predicate_object &other)=default
channel_predicate_object &	operator= (channel_predicate_object &&other)=default
std::string	glob () const
	Return the channel name glob (defaults to "*")
const channel_type_list	channel_types () const
	return a container of distinct channel types that are to be matched (defaults to an expansion of NDS::channel::DEFAULT_CHANNEL_MASK)
NDS::channel::channel_type	channel_type_mask () const
	return a compact mask of the channel types selected. this is mainly provided for the SWIG language bindings.
const data_type_list	data_types () const
	return a container of distinct data types that are to be matched (defaults to an expansion of NDS::channel::DEFAULT_DATA_MASK)
NDS::channel::data_type	data_type_mask () const
	return a compact mask of the data types selected. this is mainly provided for the SWIG language bindings.
const frequency_range &	sample_rates () const
	return the range of sample rates that are to be allowed in the query. defaults to (NDS::channel::MIN_SAMPLE_RATE, NDS::channel::MAX_SAMPLE_RATE)
NDS::channel::sample_rate_type	min_sample_rate () const
	return the minimum sample rate to be selected. This is also available through the sample_rates method.
NDS::channel::sample_rate_type	max_sample_rate () const
	return the maximum sample rate to be selected. This is also available through the sample_rates method.
const epoch &	time_span () const
	return the timespan/epoch that should constrain the query defaults to [0, NDS::buffer::GPS_INF)
NDS::buffer::gps_second_type	gps_start () const
	Return the gps start time that constrains this query. Note this is available via the time_span method.
NDS::buffer::gps_second_type	gps_stop () const
	Return the gps stop time that constrains this query. Note this is available via the time_span method.
channel_predicate_object &	set (std::string val)
	Set the glob string used in channel matching.
void	set_glob (std::string val)
	Set the glob string to match on.
channel_predicate_object &	set (NDS::channel::channel_type val)
	Set a channel type to search for.
void	set_channel_type_mask (NDS::channel::channel_type val)
	Set the channel type mask.
channel_predicate_object &	set (NDS::channel::data_type val)
	Set a data type to search for.
void	set_data_type_mask (NDS::channel::data_type val)
	Set the data type mask.
channel_predicate_object &	set (frequency_range val)
void	set_frequency_range (NDS::channel::sample_rate_type min_sample_rate, NDS::channel::sample_rate_type max_sample_rate)
	Set the [min, max) frequency range that limits this query.
channel_predicate_object &	set (epoch val)
void	set_timespan (NDS::buffer::gps_second_type gps_start, NDS::buffer::gps_second_type gps_stop)
	Set the [gps_start, gps_stop) time range that limits this query.

Private Attributes
epoch	epoch_
std::string	glob_
channel_type_list	channel_types_
data_type_list	data_types_
frequency_range	sample_rates_

Static Private Attributes
DLL_EXPORT static const data_type_list	all_data_types
DLL_EXPORT static const channel_type_list	all_channel_types

Detailed Description

A predicate object to be used in limiting the number of channels returned when searching for channels.

This object holds the various conditions that the nds2_client library will use when searching channels. The conditions (NDS epoch, name globbing, sample rates, channel type, data type, ...) are all specified in a uniform manner. Each condition should have a distinct type.

Member Typedef Documentation

channel_type_list

typedef std::vector< NDS::channel::channel_type > NDS::abi_0::channel_predicate_object::channel_type_list

data_type_list

typedef std::vector< NDS::channel::data_type > NDS::abi_0::channel_predicate_object::data_type_list

Constructor & Destructor Documentation

channel_predicate_object() [1/3]

NDS::abi_0::channel_predicate_object::channel_predicate_object ( )

inline

channel_predicate_object() [2/3]

NDS::abi_0::channel_predicate_object::channel_predicate_object ( const channel_predicate_object &  other )

default

channel_predicate_object() [3/3]

NDS::abi_0::channel_predicate_object::channel_predicate_object ( channel_predicate_object &&  other )

default

Member Function Documentation

channel_type_mask()

NDS::channel::channel_type NDS::abi_0::channel_predicate_object::channel_type_mask ( ) const

inline

return a compact mask of the channel types selected. this is mainly provided for the SWIG language bindings.

channel_types()

const channel_type_list NDS::abi_0::channel_predicate_object::channel_types ( ) const

inline

return a container of distinct channel types that are to be matched (defaults to an expansion of NDS::channel::DEFAULT_CHANNEL_MASK)

data_type_mask()

NDS::channel::data_type NDS::abi_0::channel_predicate_object::data_type_mask ( ) const

inline

return a compact mask of the data types selected. this is mainly provided for the SWIG language bindings.

data_types()

const data_type_list NDS::abi_0::channel_predicate_object::data_types ( ) const

inline

return a container of distinct data types that are to be matched (defaults to an expansion of NDS::channel::DEFAULT_DATA_MASK)

glob()

std::string NDS::abi_0::channel_predicate_object::glob ( ) const

inline

Return the channel name glob (defaults to "*")

gps_start()

NDS::buffer::gps_second_type NDS::abi_0::channel_predicate_object::gps_start ( ) const

inline

Return the gps start time that constrains this query. Note this is available via the time_span method.

gps_stop()

NDS::buffer::gps_second_type NDS::abi_0::channel_predicate_object::gps_stop ( ) const

inline

Return the gps stop time that constrains this query. Note this is available via the time_span method.

max_sample_rate()

NDS::channel::sample_rate_type NDS::abi_0::channel_predicate_object::max_sample_rate ( ) const

inline

return the maximum sample rate to be selected. This is also available through the sample_rates method.

min_sample_rate()

NDS::channel::sample_rate_type NDS::abi_0::channel_predicate_object::min_sample_rate ( ) const

inline

return the minimum sample rate to be selected. This is also available through the sample_rates method.

operator=() [1/2]

channel_predicate_object & NDS::abi_0::channel_predicate_object::operator= ( channel_predicate_object &&  other )

default

operator=() [2/2]

channel_predicate_object & NDS::abi_0::channel_predicate_object::operator= ( const channel_predicate_object &  other )

default

sample_rates()

const frequency_range & NDS::abi_0::channel_predicate_object::sample_rates ( ) const

inline

return the range of sample rates that are to be allowed in the query. defaults to (NDS::channel::MIN_SAMPLE_RATE, NDS::channel::MAX_SAMPLE_RATE)

set() [1/5]

channel_predicate_object & NDS::abi_0::channel_predicate_object::set ( epoch  val )

inline

Set the epoch/time span for the predicate

Parameters

val	A NDS::epoch representing the timespan

Returns

This object

set() [2/5]

channel_predicate_object & NDS::abi_0::channel_predicate_object::set ( frequency_range  val )

inline

Set the sample rate rate to search for

Parameters

val	The sample rate range

Returns

This object

set() [3/5]

channel_predicate_object & NDS::abi_0::channel_predicate_object::set ( NDS::channel::channel_type  val )

inline

Set a channel type to search for.

Parameters

val	The channel type to search for.

Returns

This object

Note

This may be called multiple times, each additional type expands the search space

set() [4/5]

channel_predicate_object & NDS::abi_0::channel_predicate_object::set ( NDS::channel::data_type  val )

inline

Set a data type to search for.

Parameters

val	The data type to search for.

Returns

This object

Note

This may be called multiple times, each additional type expands the search space

set() [5/5]

channel_predicate_object & NDS::abi_0::channel_predicate_object::set ( std::string  val )

inline

Set the glob string used in channel matching.

Parameters

val	The glob string to match with

Returns

This object

set_channel_type_mask()

void NDS::abi_0::channel_predicate_object::set_channel_type_mask ( NDS::channel::channel_type  val )

inline

Set the channel type mask.

Parameters

val

Note

this calls set(channel_type)

set_data_type_mask()

void NDS::abi_0::channel_predicate_object::set_data_type_mask ( NDS::channel::data_type  val )

inline

Set the data type mask.

Parameters

val

Note

this calls set(data_type)

set_frequency_range()

void NDS::abi_0::channel_predicate_object::set_frequency_range ( NDS::channel::sample_rate_type  min_sample_rate, NDS::channel::sample_rate_type  max_sample_rate  )

inline

Set the [min, max) frequency range that limits this query.

Parameters

min_sample_rate	The minimal sample rate
max_sample_rate	The maximum sample rate

Note

this calls set(frequency_range)

set_glob()

void NDS::abi_0::channel_predicate_object::set_glob ( std::string  val )

inline

Set the glob string to match on.

Parameters

val

Note

this calls set(string)

set_timespan()

void NDS::abi_0::channel_predicate_object::set_timespan ( NDS::buffer::gps_second_type  gps_start, NDS::buffer::gps_second_type  gps_stop  )

inline

Set the [gps_start, gps_stop) time range that limits this query.

Parameters

gps_start	Start time in GPS Seconds
gps_stop	End time in GPS Seconds exclusive.

Note

this calls set(epoch)

time_span()

const epoch & NDS::abi_0::channel_predicate_object::time_span ( ) const

inline

return the timespan/epoch that should constrain the query defaults to [0, NDS::buffer::GPS_INF)

Member Data Documentation

all_channel_types

const channel_predicate_object::channel_type_list NDS::abi_0::channel_predicate_object::all_channel_types

staticprivate

Initial value:

{
                NDS::channel::channel_type::CHANNEL_TYPE_ONLINE,
                NDS::channel::channel_type::CHANNEL_TYPE_RAW,
                NDS::channel::channel_type::CHANNEL_TYPE_RDS,
                NDS::channel::channel_type::CHANNEL_TYPE_STREND,
                NDS::channel::channel_type::CHANNEL_TYPE_MTREND,
                NDS::channel::channel_type::CHANNEL_TYPE_TEST_POINT,
                NDS::channel::channel_type::CHANNEL_TYPE_STATIC
            }

all_data_types

const channel_predicate_object::data_type_list NDS::abi_0::channel_predicate_object::all_data_types

staticprivate

Initial value:

{
                NDS::channel::data_type::DATA_TYPE_INT16,
                NDS::channel::data_type::DATA_TYPE_INT32,
                NDS::channel::data_type::DATA_TYPE_INT64,
                NDS::channel::data_type::DATA_TYPE_FLOAT32,
                NDS::channel::data_type::DATA_TYPE_FLOAT64,
                NDS::channel::data_type::DATA_TYPE_COMPLEX32,
                NDS::channel::data_type::DATA_TYPE_UINT32
            }

channel_types_

channel_type_list NDS::abi_0::channel_predicate_object::channel_types_

private

data_types_

data_type_list NDS::abi_0::channel_predicate_object::data_types_

private

epoch_

epoch NDS::abi_0::channel_predicate_object::epoch_

private

glob_

std::string NDS::abi_0::channel_predicate_object::glob_

private

sample_rates_

frequency_range NDS::abi_0::channel_predicate_object::sample_rates_

private

---

The documentation for this class was generated from the following files:

• src/libndscxx/module/nds_connection.hh
• src/libndscxx/module/nds_connection.cc
